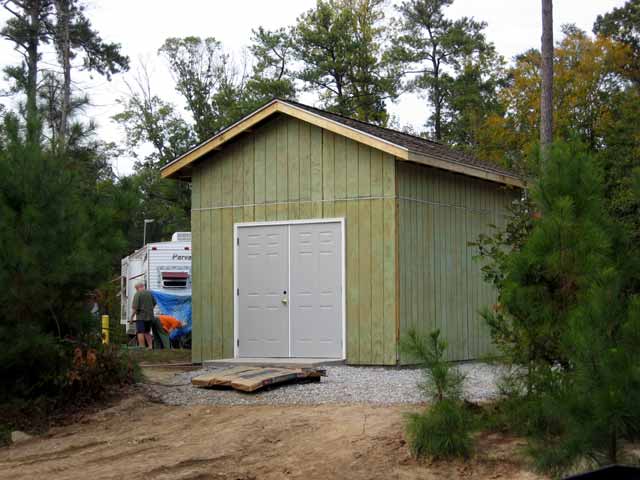

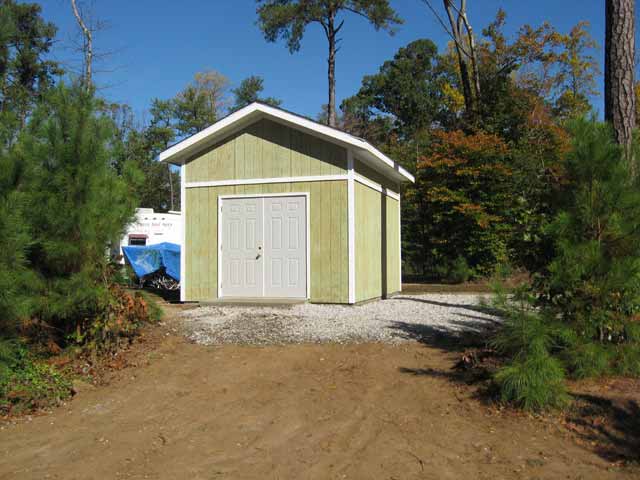

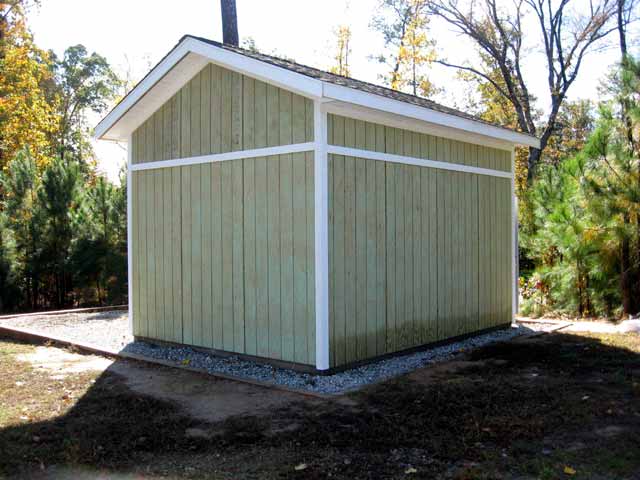

Camp Host Shed

(click on images for a larger view)


The Friends of Chippokes provided funding for a new storage shed for the Camp Hosts.

 It will be used to store all their equipment and materials.

Construction was started on 9/22 and the last nail was driven on 10/28/09 .

All the work was done by volunteers and park personnel.

The design is a prototype for use at all Virginia State Parks.

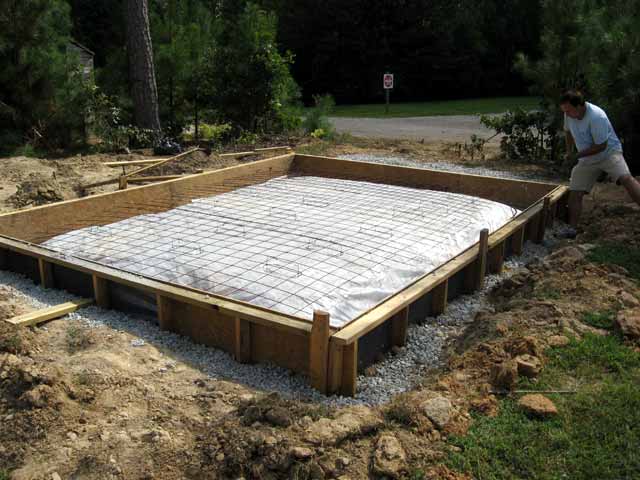

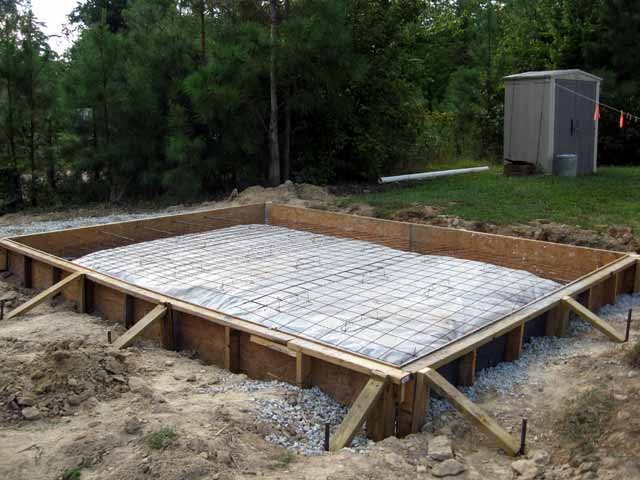

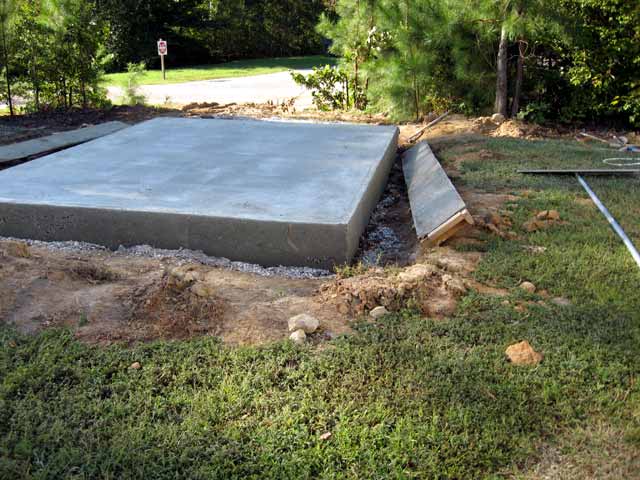

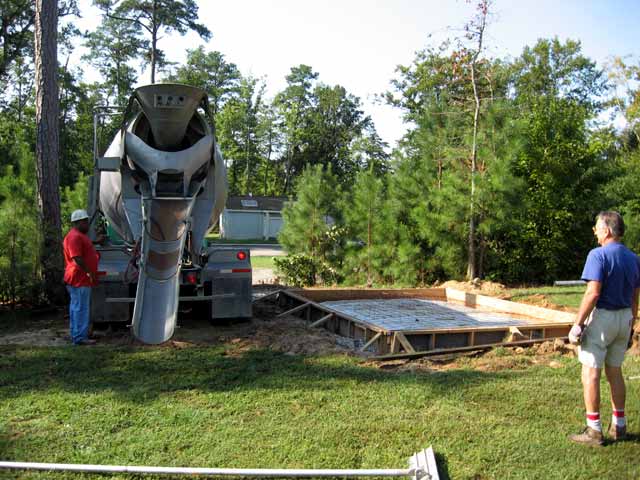

shed08.jpg (54851 bytes) The concrete truck arrives with 8 yards.

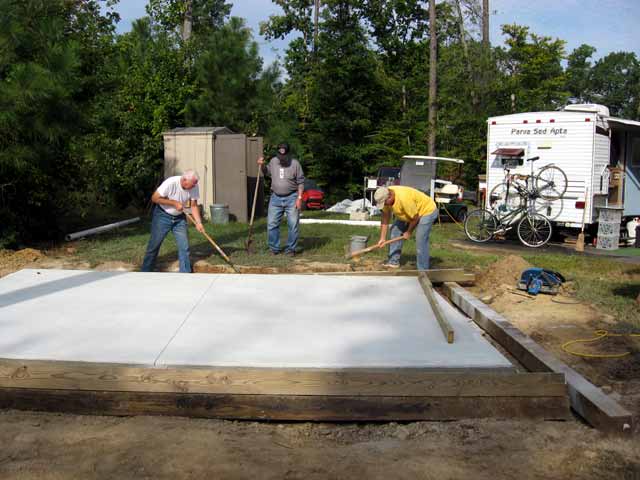

shed12.jpg (40431 bytes) The Airstream Club arrived for a couple of work days.

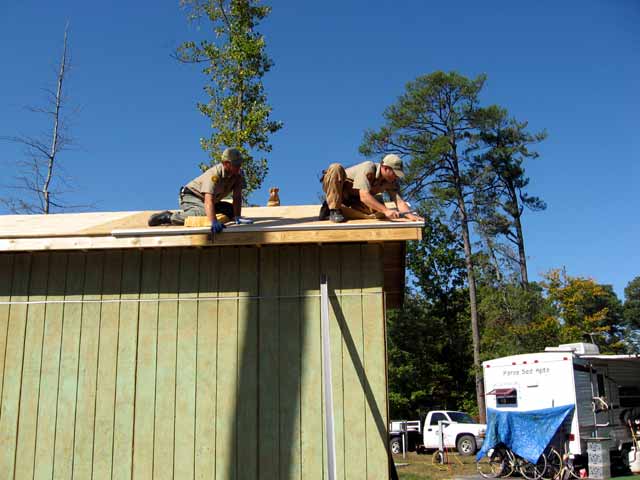

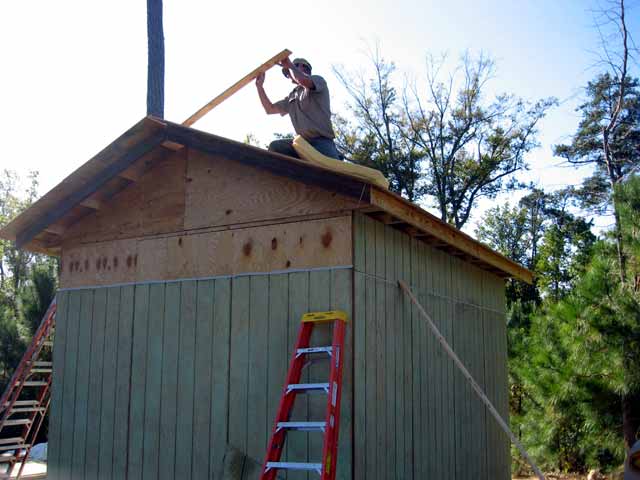

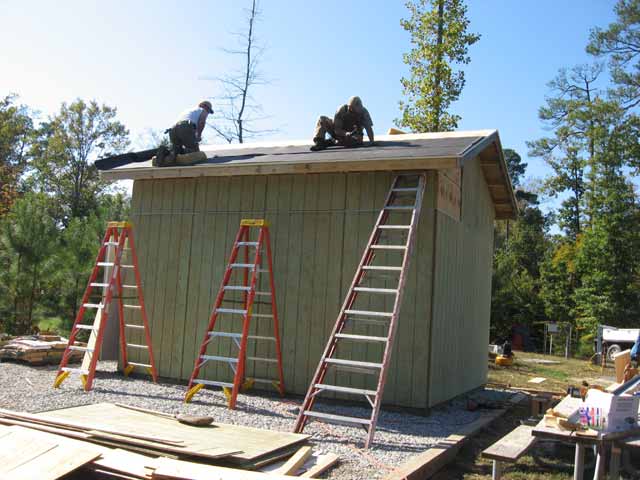

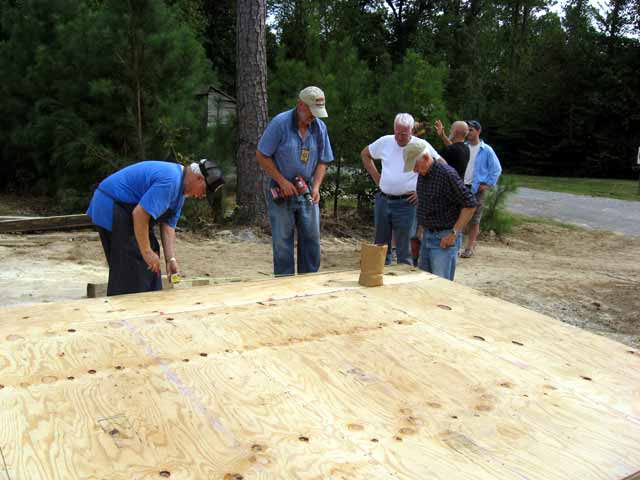

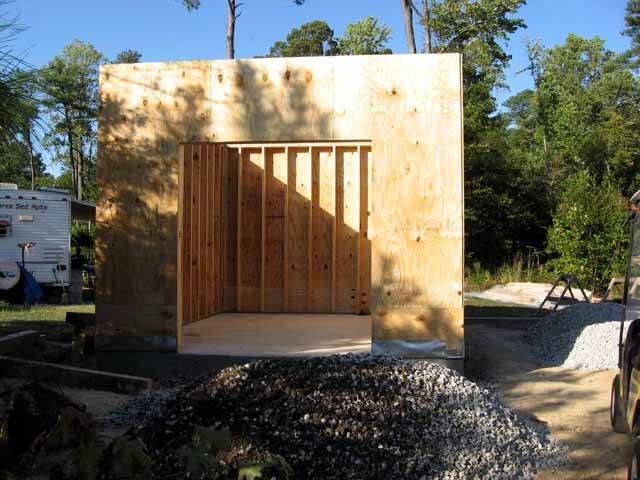

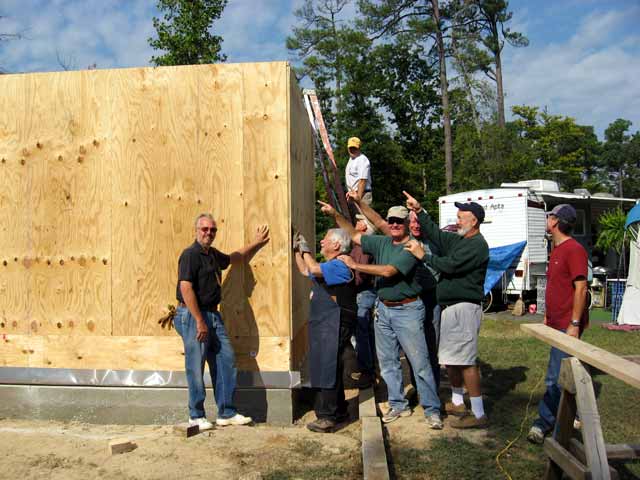

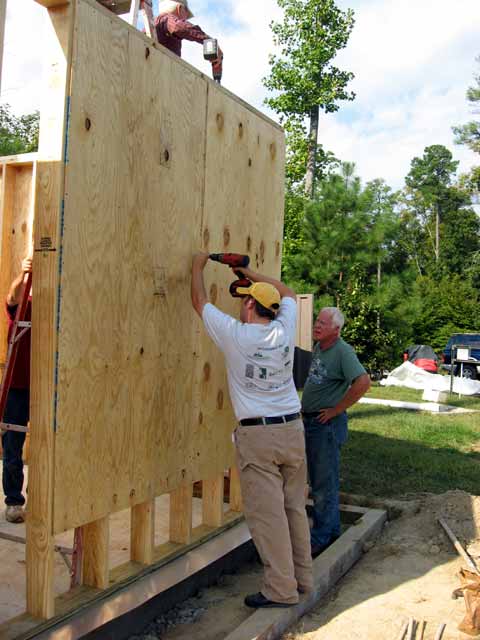

Adding sheathing.

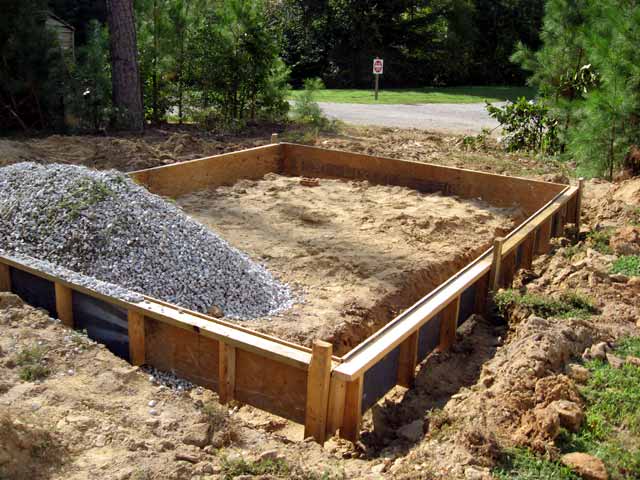

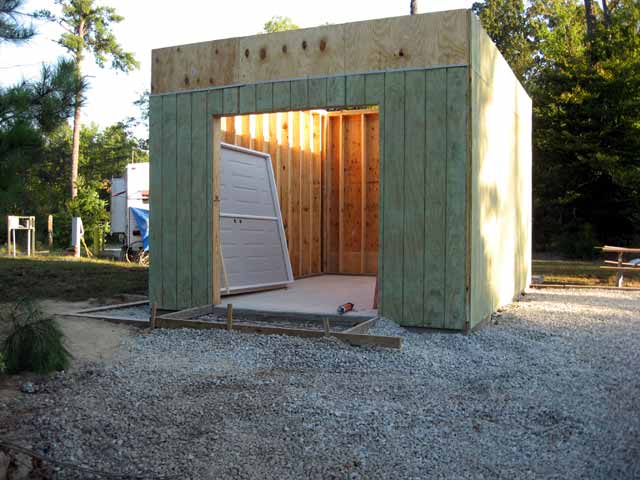

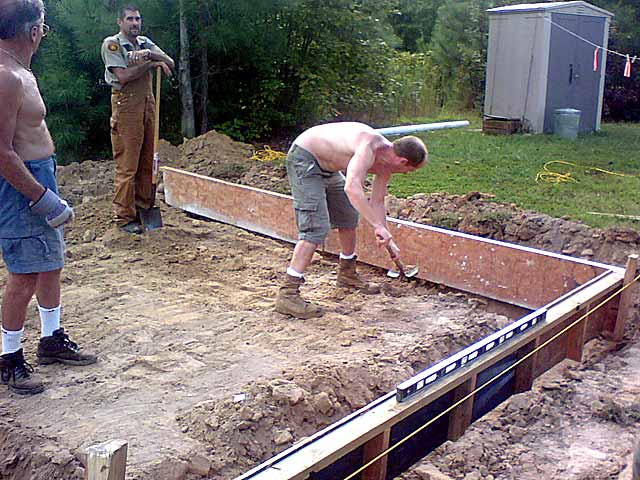

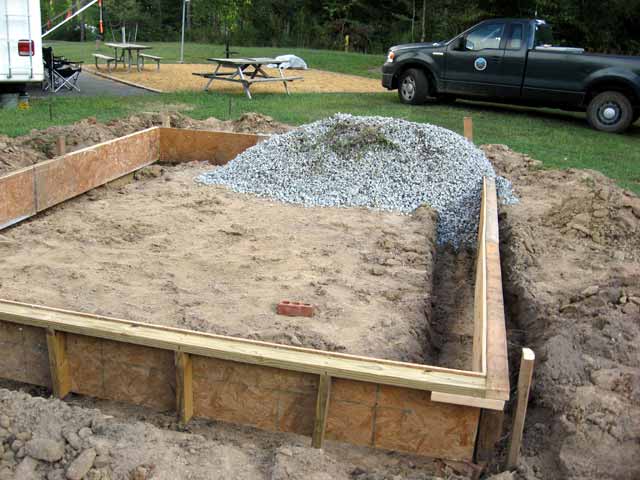

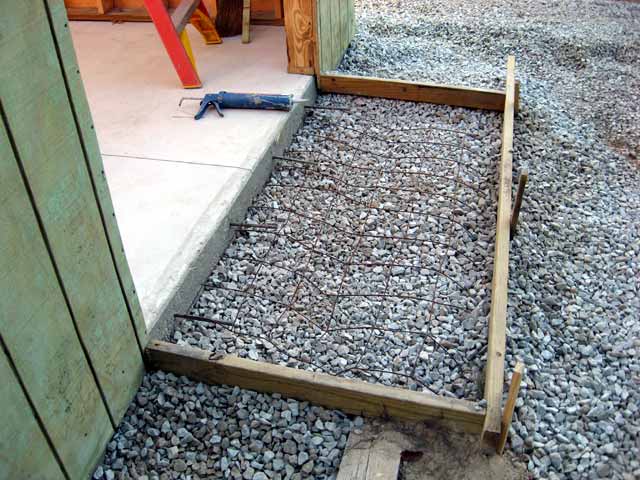

Forms for the apron.

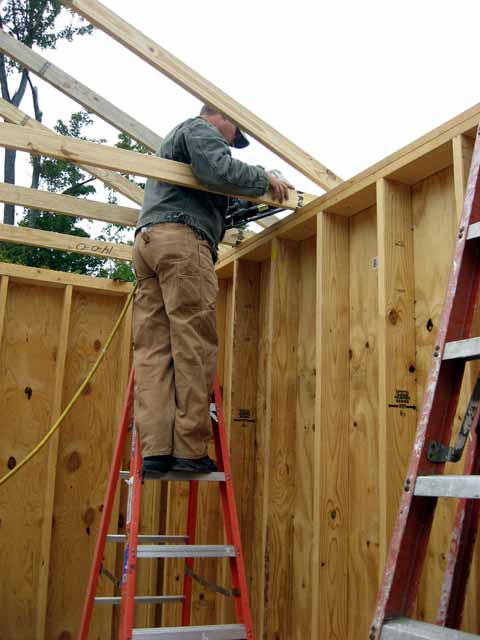

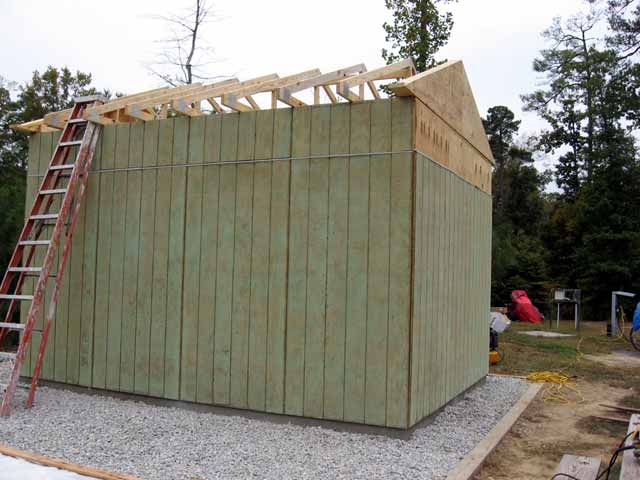

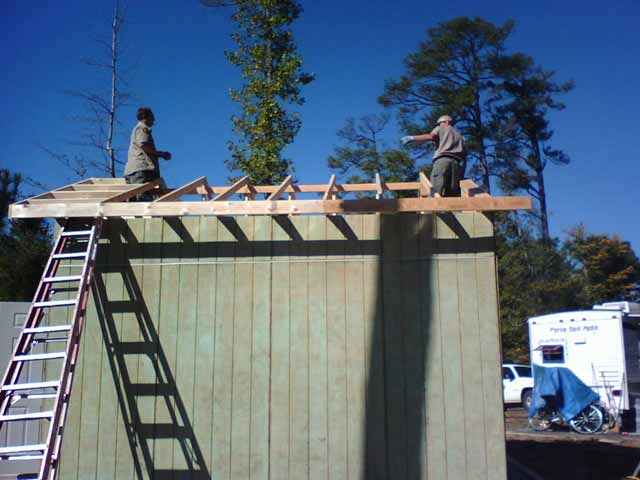

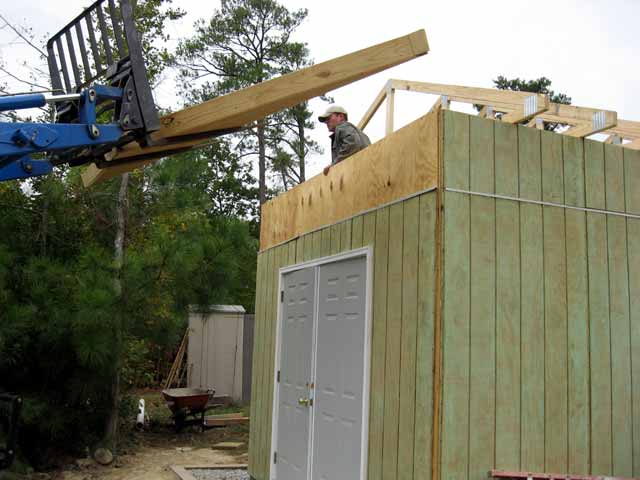

Installing the trusses.
